Research Workbench User Guide

The IINTS-AF Research Workbench is the native desktop interface for the Python SDK. It helps you run a protocol, inspect its outputs, create reproducibility evidence, and request a local AI review without reimplementing scientific logic in the app.

Research scope

IINTS-AF is research and education software. It is not a medical device and must not be used for diagnosis, insulin dosing, treatment decisions, or real-time patient care.

About the screenshots

Screenshots in the automatic-workflow section were captured from the native macOS app during a real simulated booth protocol. Other screenshots use labelled documentation fixtures. Neither is clinical validation evidence. The automatic workflow requires a Python engine advertising automatic_run_bundle; update both components if these options are unavailable.

What The App Is

The workbench is a controlled interface around the SDK, not a second simulation engine. Its layers are deliberately separated:

flowchart LR
    UI["Tauri desktop interface"] --> RUST["Rust command boundary"]
    RUST --> BRIDGE["Versioned Python bridge"]
    BRIDGE --> SDK["IINTS-AF Python SDK"]
    SDK --> FILES["Local CSV, JSON, PDF and evidence artifacts"]
    FILES --> UI
    UI -. "optional bounded prompt" .-> OLLAMA["Local Ollama model"]
    OLLAMA -. "advisory text only" .-> UI

• Tauri interface provides navigation, native file selectors, charts, and status messages.
• Rust boundary validates commands and paths before starting the fixed Python bridge.
• Python SDK owns simulations, deterministic metrics, data contracts, and report generation.
• Local files remain the reviewable source record. The interface does not rewrite result data.
• Ollama may explain a loaded result, but it cannot replace deterministic calculations or authorize a dose.

This separation matters when citing results: record the Python SDK version and run metadata, not only the desktop-app version.

Install And Open

Use the current native beta installer for your platform:

Platform	Installer
Windows	Download .exe
macOS	Download .dmg
Linux	Download .AppImage

The native app delegates calculations to the Python SDK. If Overview reports that the Python engine is unavailable, select Install Python engine. The same action is available under Settings → Install or update Python SDK.

The app opens a terminal with a fixed Rust-owned command, creates a private engine at ~/.iints-af/python-engine, and installs the supported SDK dependencies there. After completion, return to the app and select Refresh versions. This avoids relying on the limited PATH inherited by a macOS Finder launch and does not modify an unrelated project environment.

Python 3.10 through 3.14 must be available on the computer. The installation guide includes a manual fallback when automatic discovery cannot find it.

First-run checklist

1. Open Settings and choose a default output folder.
2. Select Install or update Python SDK if the Overview cannot find a compatible engine.
3. Return to Overview and select Run diagnostics.
4. Confirm the SDK and Python versions before generating research artifacts.
5. Start with Reference baseline day as an installation/reporting check, or use the shorter booth meal-response demo for interface practice.

Native interaction

The installed app deliberately behaves like a desktop workbench rather than a website:

• labels, navigation, and buttons cannot be accidentally selected or dragged
• inputs, logs, AI answers, result values, and tables remain selectable for research work
• the browser context menu is suppressed outside those copyable data areas
• scientific charts appear immediately without decorative drawing animations
• embedded browser developer tools are disabled in the packaged application
• folder and model/result locations use native macOS, Windows, or Linux selectors; paths remain editable for advanced reproducibility workflows

Use Ctrl/Cmd+O to open the result-file selector and Ctrl/Cmd+, to open Settings.

These interface rules do not restrict access to generated artifacts; files remain available in the selected output folder.

The Normal Workflow

Use the left navigation in this order:

1. Overview — verify the local engine and optional tools.
2. Run protocols — choose a protocol, output folder, and deterministic seed.
3. Inspect results — review metrics, the glucose trace, and CSV rows.
4. Reproducibility — inspect the automatically created package; add authorship and licence details if appropriate.
5. Local AI review — optionally ask Ollama to summarize the loaded result.
6. Foundation AI & Visualizer — pretrain or inspect the independent GlucoFM-method reproduction.
7. Scientific Portfolio — assemble only the local evidence files that actually exist.
8. Research tools — use independent biology, equation-model, or device-physics tools.
9. Evidence sources — inspect connector status and open official resources.

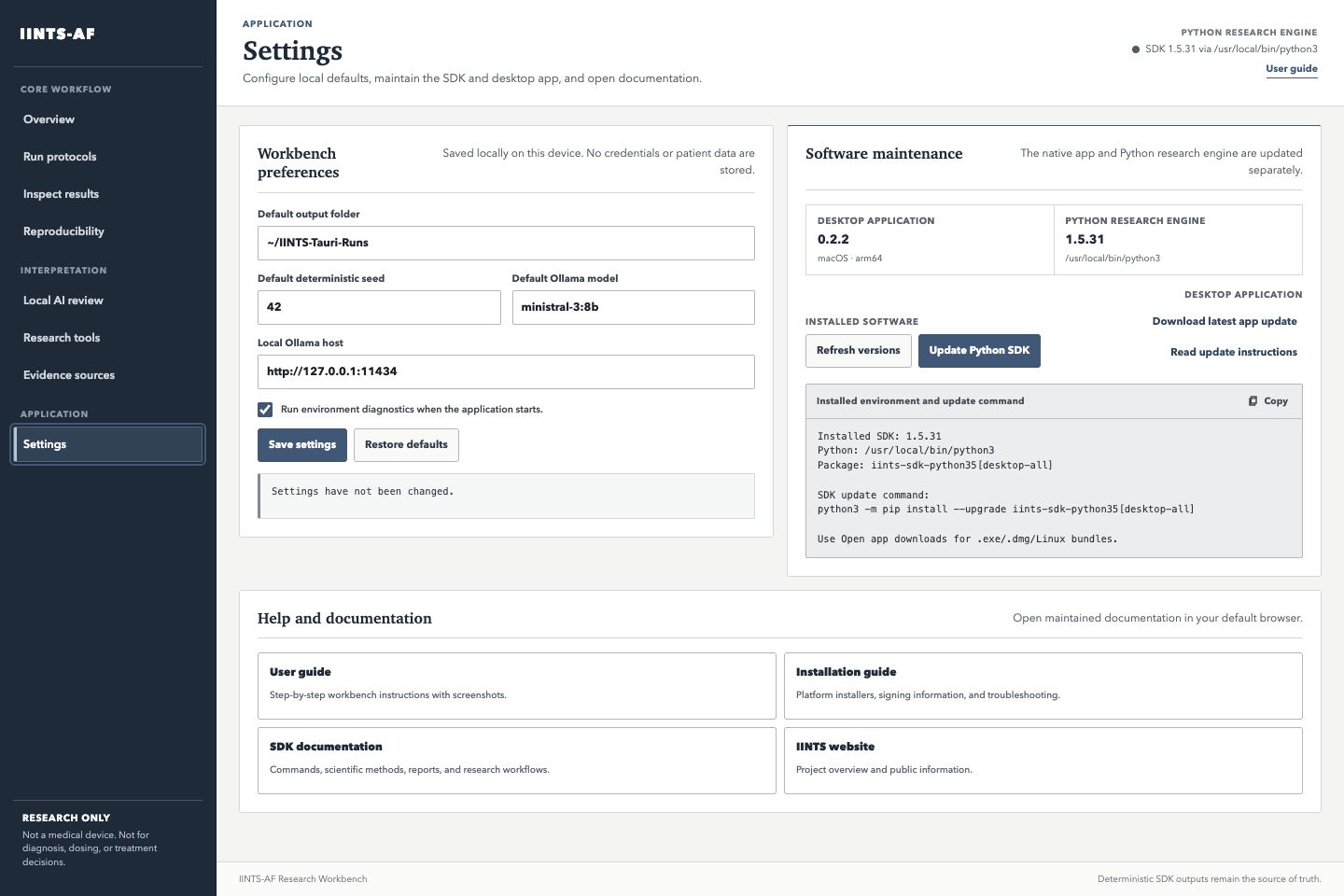

10. Settings — save local defaults, check versions, update software, and open help.

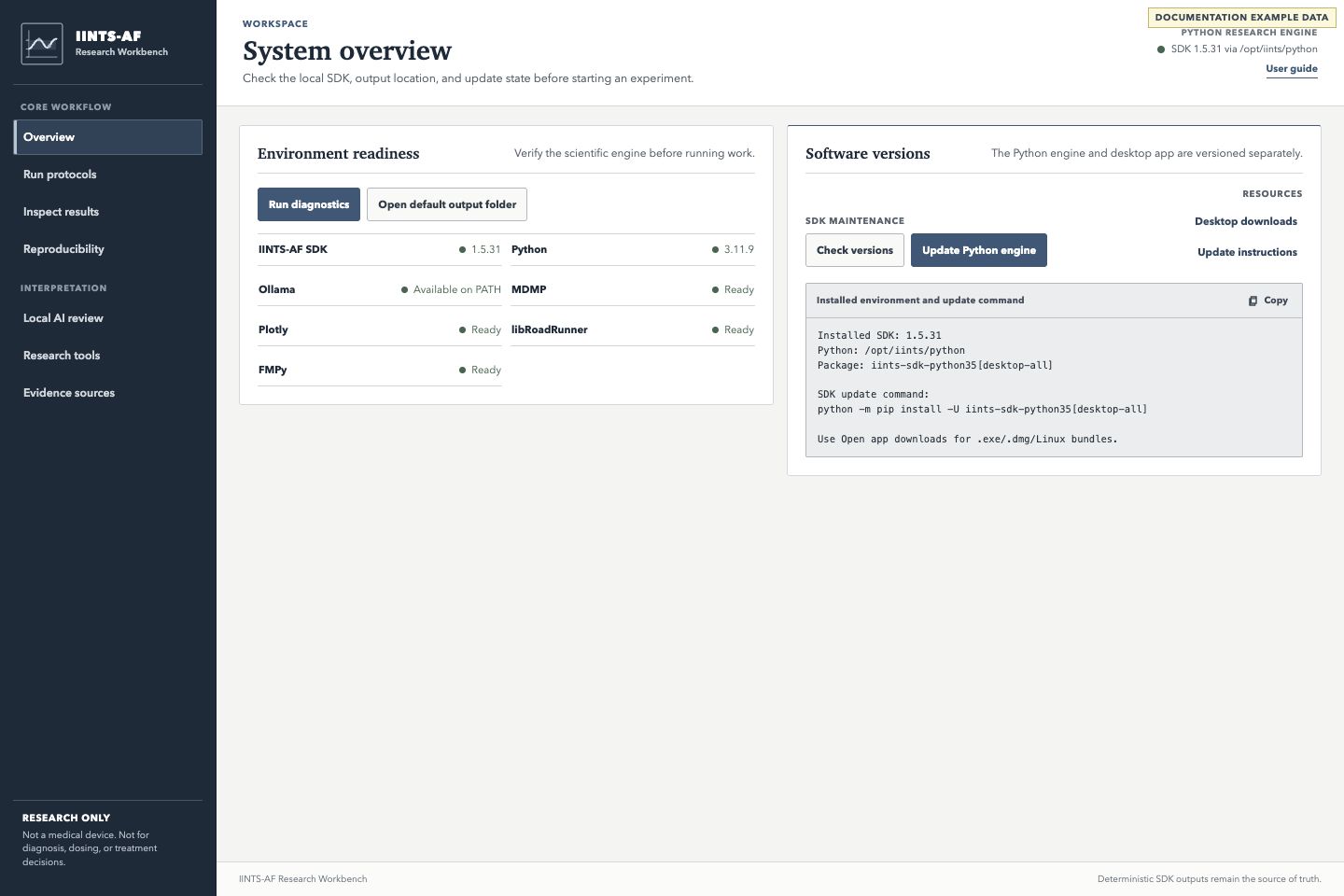

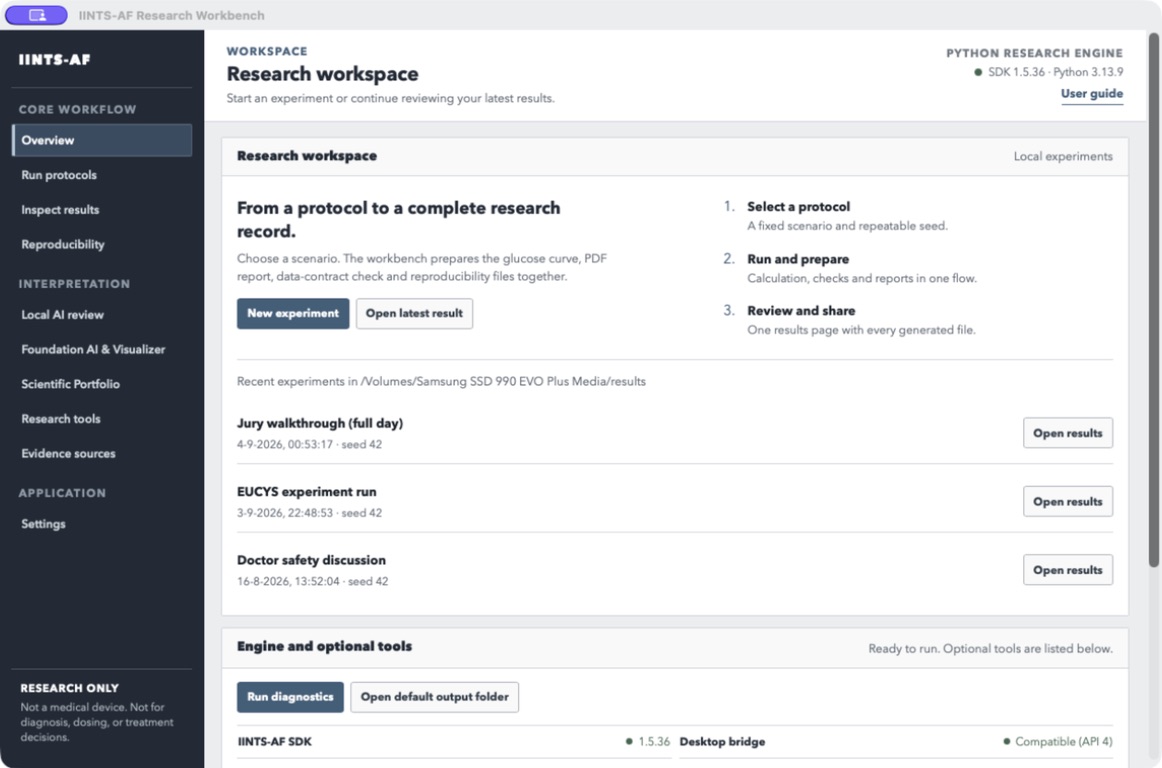

1. Check The Environment

Select Run diagnostics before a new experiment. A normal ready environment shows:

• the installed IINTS-AF SDK version
• the Python version used by the app bridge
• whether an Ollama command was found and whether its local service/model is ready
• readiness of optional modules such as MDMP, Plotly, libRoadRunner, and FMPy

Missing optional modules do not always block a normal simulation. They only block the feature that depends on them.

The Ollama command and the Ollama service are separate checks. On macOS the application may find Ollama inside /Applications even when a Finder-launched app does not inherit a terminal PATH. The Local AI page performs the service and model check.

Equivalent terminal check:

iints doctor
python -c "import iints; print(iints.__version__)"

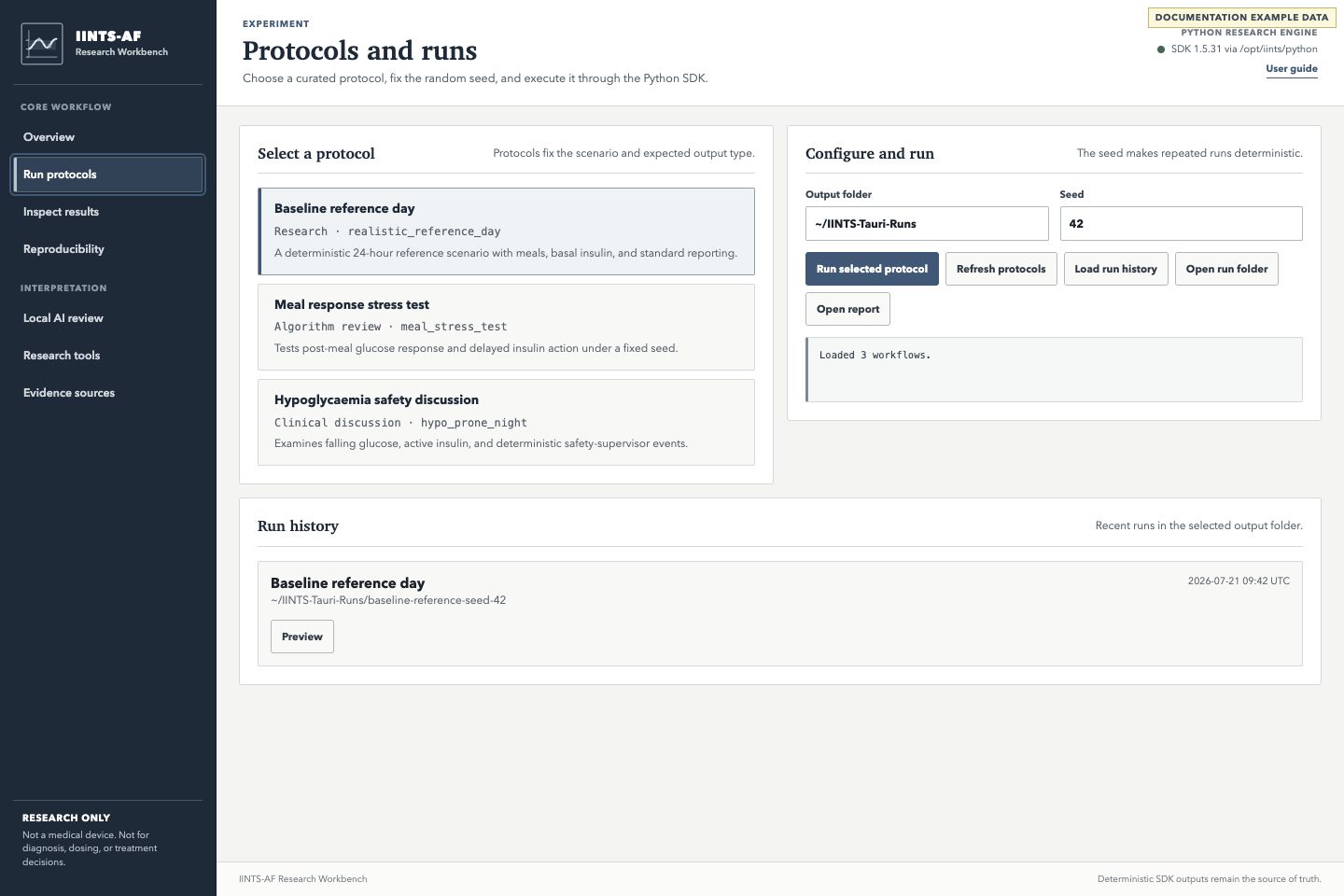

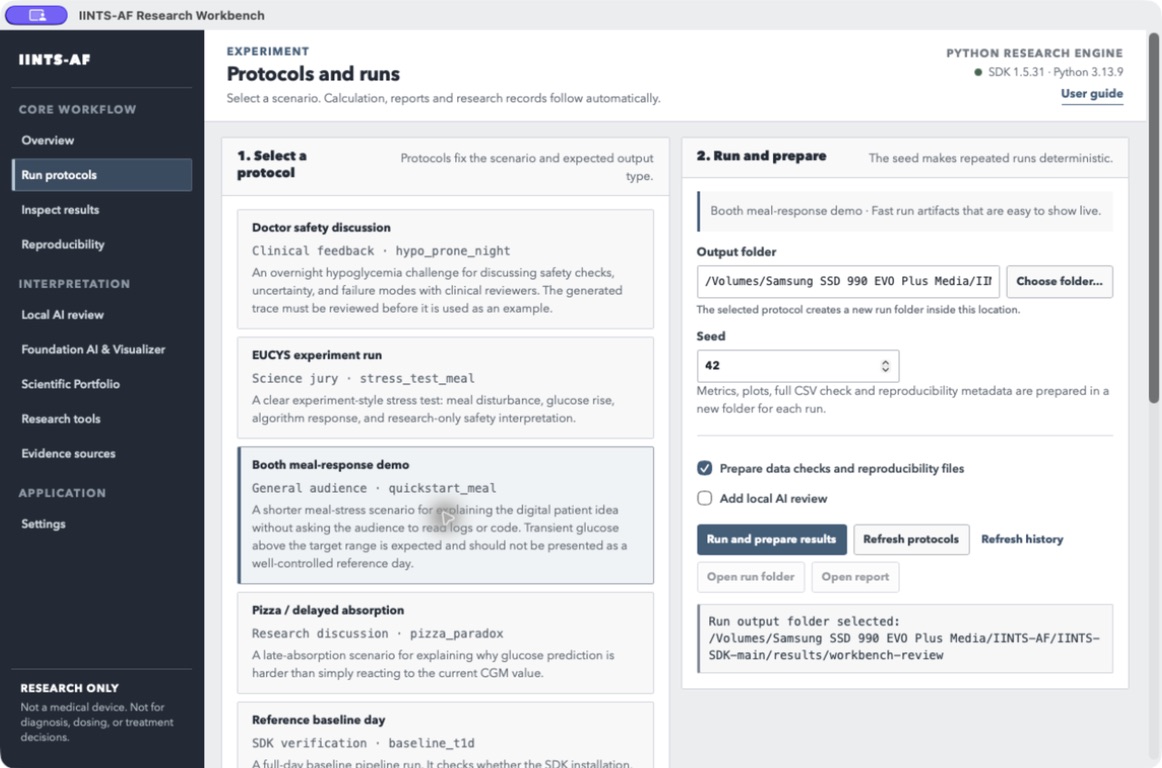

2. Run A Protocol

1. Select one protocol in the left panel.
2. Select Choose folder... and choose an output location you can archive later.
3. Record the seed. The default 42 is suitable for a reproducible first run.
4. Leave Prepare data checks and reproducibility files enabled. Add local AI review only if you want it.
5. Select Run and prepare results. The results page opens automatically after preparation.
6. Review the per-stage status. An optional step can fail without discarding the successful simulation.

Do not compare runs unless their protocol, SDK version, patient profile, time step, and seed policy are recorded.

Automatic preparation and reopening

Every run receives a new timestamped directory; repeating a protocol does not overwrite the previous experiment. The standard flow prepares the following from the actual simulation output:

Step	Output	What it means
Simulation	CSV, PDF and run configuration	The SDK computes the trajectory; the UI does not invent it.
Result review	Glucose figure and desktop_metrics.json	Metrics use the full CSV, not only the rows displayed in the table.
Data contract	Signed MDMP certificate, report and public key	A full-file schema/completeness check, not clinical validation.
Optional local AI	local_ai_review.md and JSON	Advisory interpretation; may fail or be filtered without invalidating the simulation.
Research record	ro-crate-metadata.json, academic_audit.json, ACADEMIC_BUNDLE.md	Checksums and provenance; authorship and licence may still need review.

The most-used files are shown first. Expand Data checks and supporting files for certificates, configuration and metadata. Expand All metrics and column information for technical details. Use Open latest result on Overview, or a history entry, to reopen an experiment without rerunning it. Changing the output folder reloads its own history. Changing a CSV clears the old review context; previously prepared checks are not restored if the file's SHA-256 has changed.

OPEN_FIRST.md is the run's entry point outside the app. desktop_run_bundle.json records final preparation status and paths, including warnings. Files remain on disk if an optional exporter fails. A saved intermediate preparation state is marked as interrupted rather than presented as complete.

The signing private key stays in ~/.iints-af/keys/mdmp, outside the shareable run folder. Only the public verification key accompanies the certificate. Review files and data permissions before sharing.

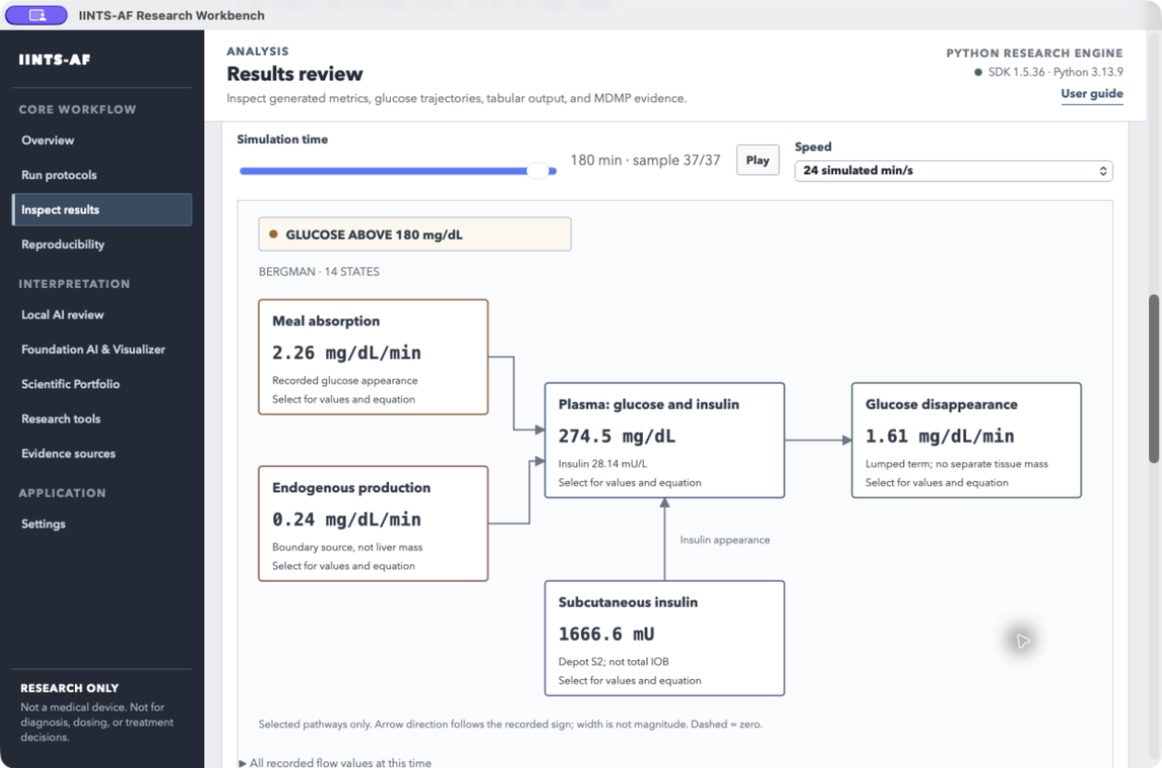

Recorded physiology map

Use Inspect results → Compartment model → Physiology map for a compact pathway overview. The adjacent Diagram tab retains the detailed state/flux schematic.

This is not a 3D anatomical reconstruction. It presents selected relationships from the loaded model:

• Plasma glucose is a concentration; the box is not a heart model.
• Endogenous production uses the model's actual recorded EGP term, including Bergman's basal_production. It is not stored liver glycogen.
• Meal absorption shows the recorded glucose-appearance rate with its source units.
• Subcutaneous insulin shows an identified insulin depot, not a glucagon depot or total insulin on board.
• Glucose disposition distinguishes Bergman's lumped disappearance term from peripheral exchange when the loaded schema provides it. It does not invent a separate muscle mass.

Select a box to inspect its recorded states or equation. The explanation appears below the map, not on top of other values. Expand All recorded flow values at this time for the complete recorded list. The overview intentionally omits some pathways; it is not a complete mass-balance diagram.

Values snap to a recorded sample and show its time/index. Playback moves the time cursor only; there are no decorative flow particles. Arrows reverse for negative signed rates, have no arrowhead at zero, and disappear for unrecorded channels. Width is constant and does not compare incompatible units. A value inside 70–180 mg/dL is labelled in range, not stable; a single value cannot establish stability.

Optional local review

The run preference uses the Ollama model/host selected in Settings. The automatic run step does not silently download models or start remote services. Use Local AI review → Start local AI to prepare Ollama first; this can involve a model download. Without a ready model, the run retains its artifacts and records a warning for that optional step.

Numeric-claim and advice filters may remove all narrative notes. In that case the app says so and keeps the deterministic metrics visible. A successful LLM request is not verification of physiological realism. In Settings → After each run, save automatic preparation/review defaults for future runs.

Curated protocols

Protocol	Intended use	Interpretation boundary
Doctor safety discussion	discuss an overnight low-glucose challenge with a clinical reviewer	a simulated challenge, not a treatment recommendation
EUCYS experiment run	demonstrate a meal-stress experiment and its recorded safety events	evidence for the software experiment, not clinical effectiveness
Booth meal-response demo	short public explanation of a meal response	target-range excursions are intentional; this is not a controlled reference day
Pizza / delayed absorption	inspect delayed meal dynamics and forecasting uncertainty	a scenario assumption, not a universal pizza-response model
Reference baseline day	verify installation, reports, and artifact generation	an SDK baseline, not a clinically validated reference trace
Jury walkthrough (full day)	review a 24-hour, five-minute-step example with evidence artifacts	remains simulated and must be presented with its limitations

The run button is disabled while the SDK process is active. Cancelling stops the child process and records the cancellation in the visible status; it does not mark a partial folder as a completed run.

The app calls the same SDK engine used by CLI workflows. A typical command-line equivalent is:

iints presets run \
  --name realistic_reference_day \
  --algo algorithms/example_algorithm.py \
  --seed 42 \
  --output-dir results/reference_day_seed_42

The exact equivalent command can differ by curated desktop protocol. Treat the generated run configuration as the authoritative record.

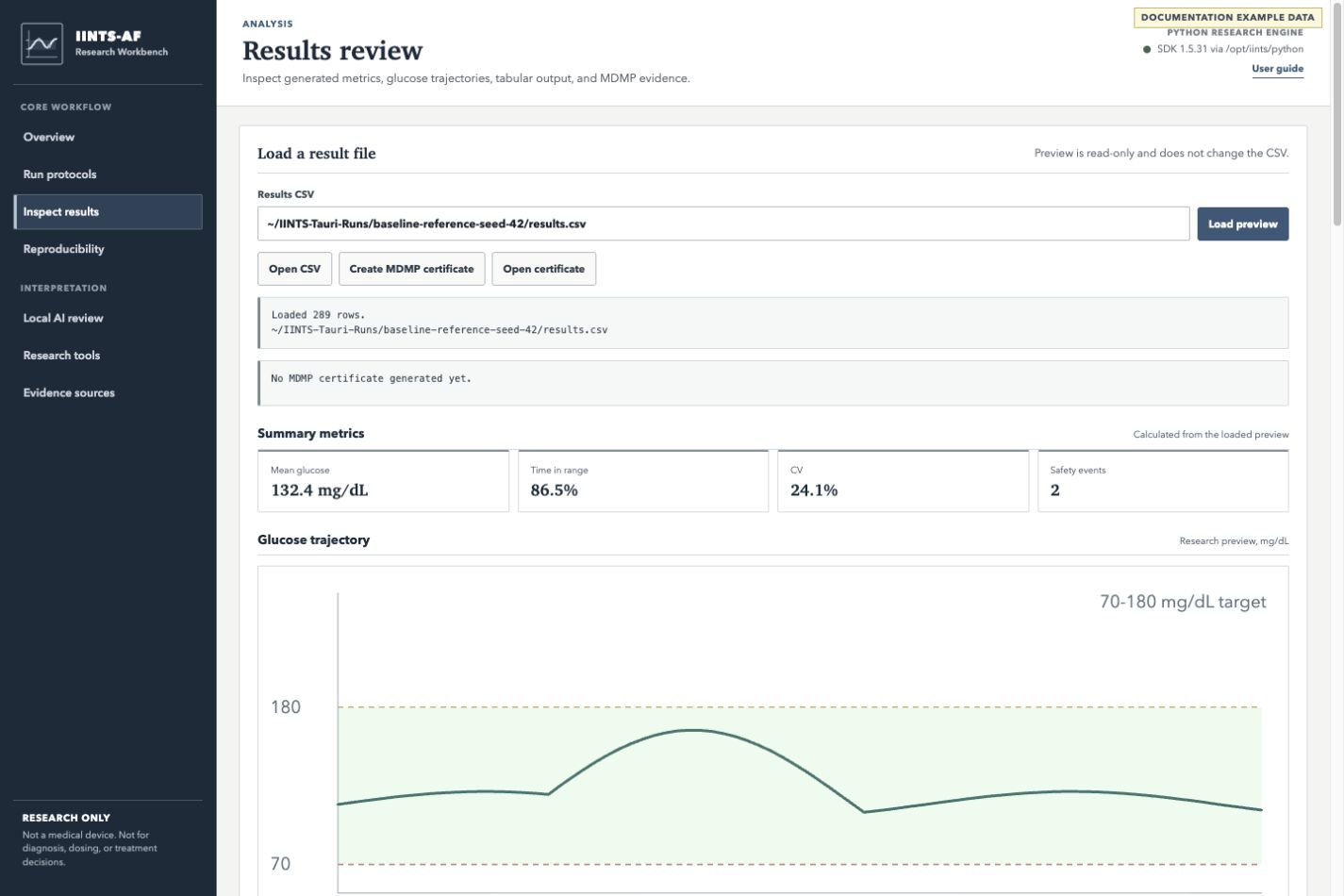

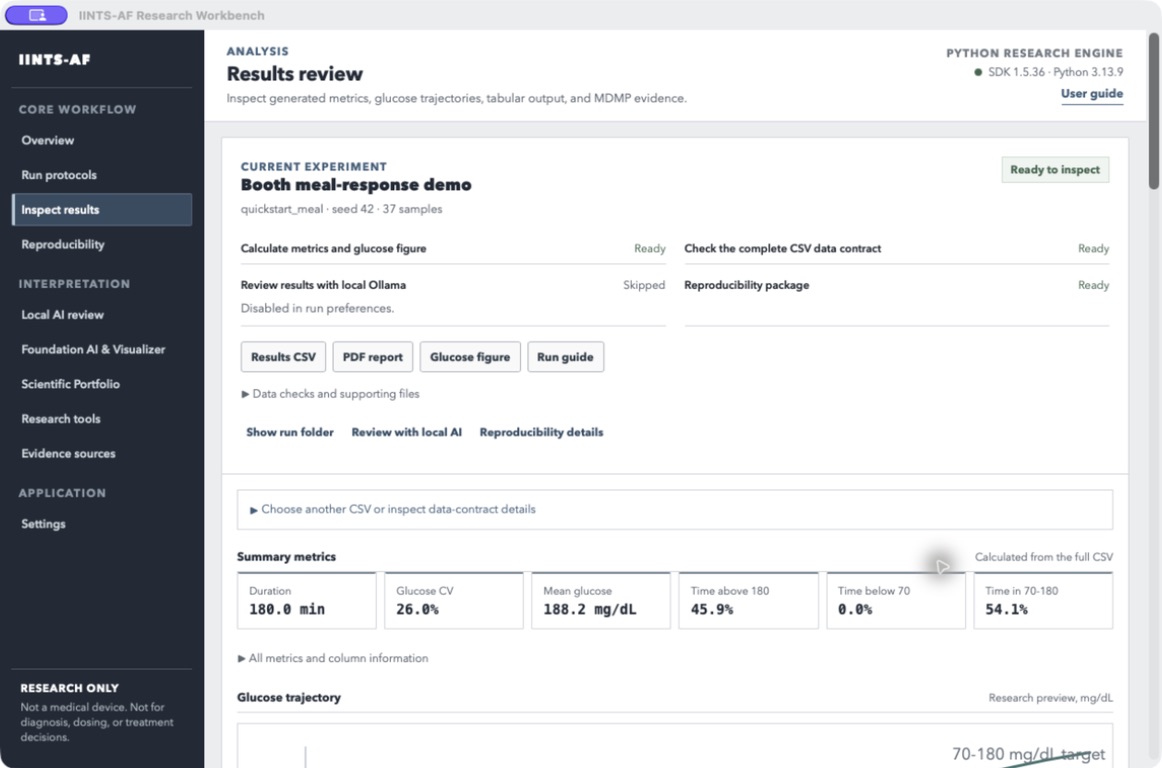

3. Inspect Results

After a desktop protocol completes, the app loads its results.csv automatically. To inspect an existing run, select Choose CSV..., choose the local file; its preview loads automatically. If you edit the path manually, select Load preview. Advanced users may still edit the displayed path directly.

Review these parts together:

• Result status — confirms the file and row count that were loaded.
• Summary metrics — compact orientation metrics, not a complete analysis.
• Glucose trajectory — a bounded visual preview with the configured 70–180 mg/dL reference band.
• Tabular preview — a bounded selection of rows from the source CSV; it is not the full dataset.
• MDMP certificate — data-contract checks for the selected CSV.

The Diagram view shows model states and declared fluxes. The Physiology map provides a model-aware overview of selected pathways with recorded values and a non-overlapping detail panel. See the map instructions above for its limits.

The historical MDMP label clinical_grade, when encountered in an artifact, means that the strongest implemented data-contract checks passed. It does not mean that the physiology, cohort, model, or result has been clinically validated.

The preview is read-only. It must not silently interpolate, repair, or overwrite the source CSV.

Useful CLI checks:

iints report --results-csv path/to/results.csv --style agp
iints data certify data_contract.yaml path/to/results.csv --quick

Read Understand A Run before using a preview as evidence in a study.

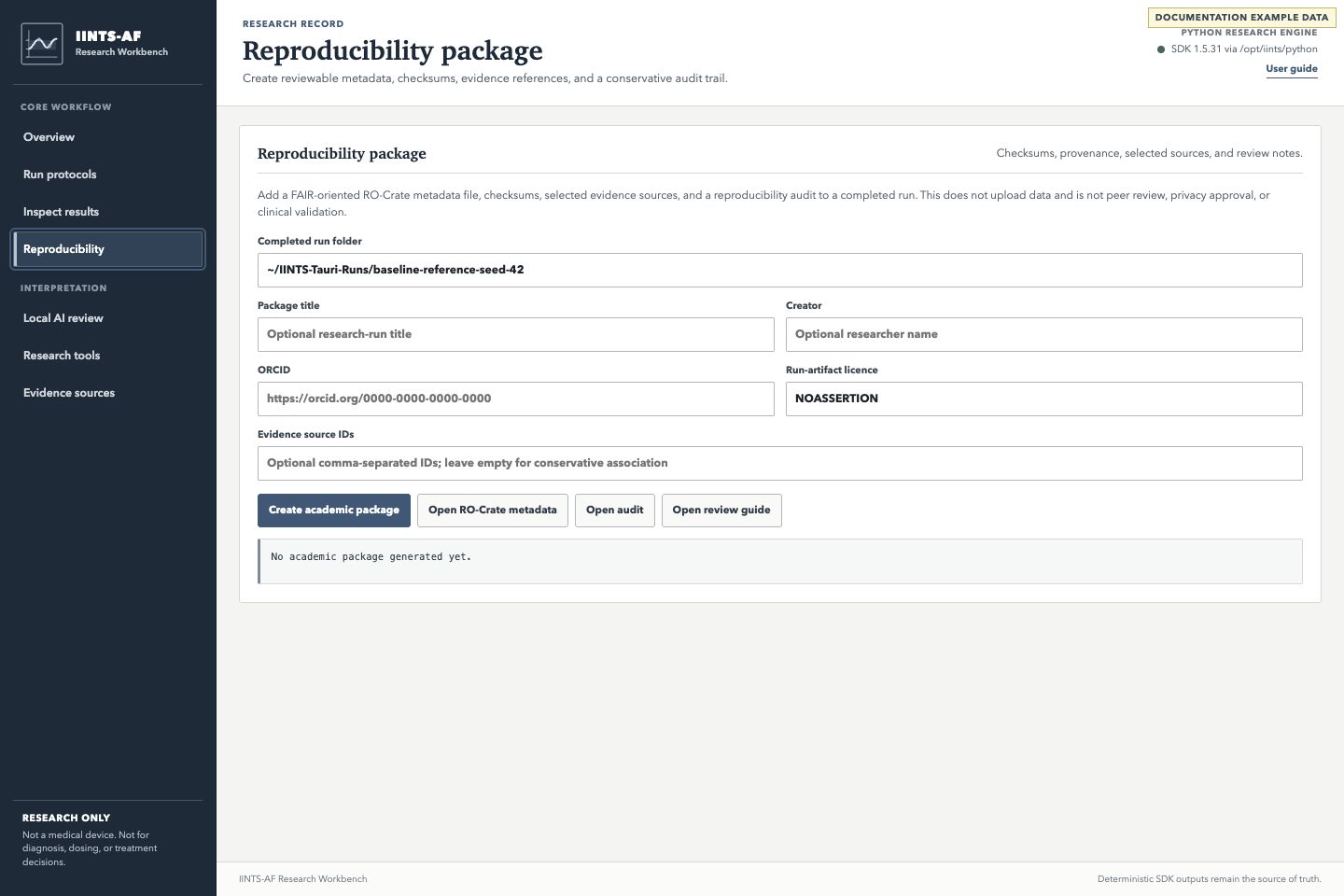

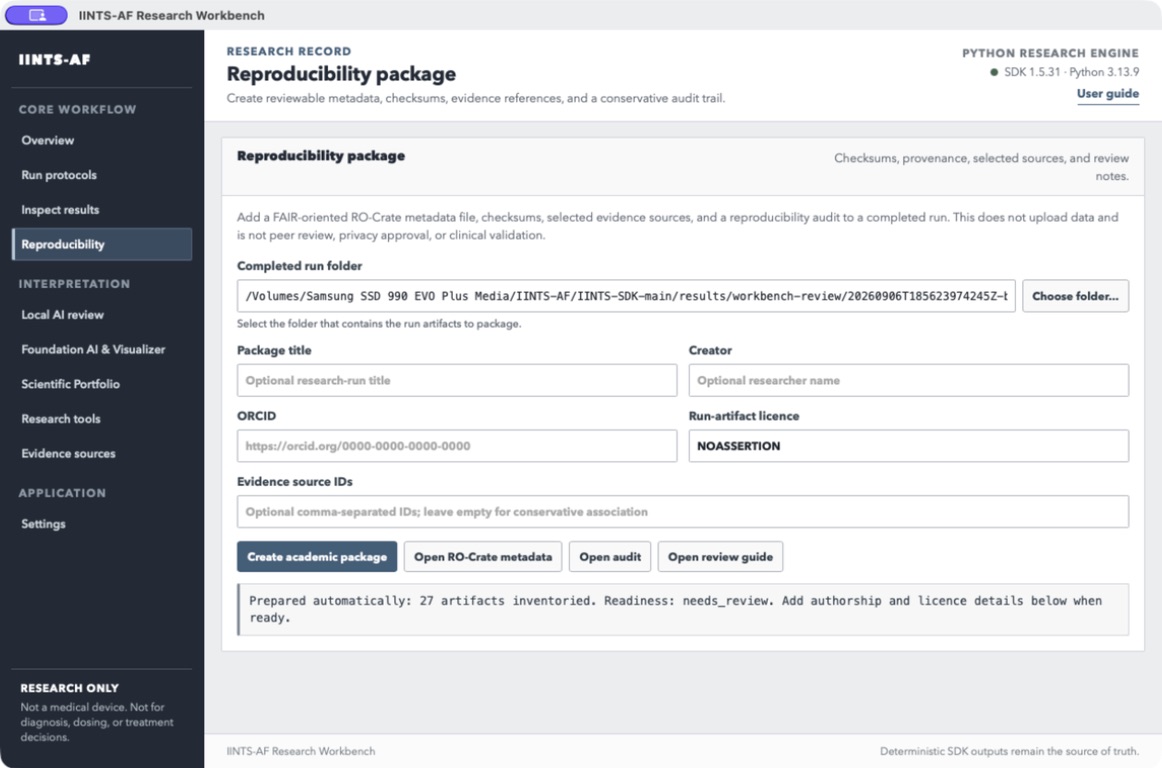

4. Create A Reproducibility Package

Open Reproducibility after loading a completed run.

1. Confirm the completed run folder or select Choose folder... to locate one.
2. Add a descriptive package title.
3. Add the researcher name and ORCID when appropriate.
4. Leave the run-artifact licence as NOASSERTION unless you know which licence applies to every exported artifact.
5. Add explicit evidence source IDs only when those sources support the run.
6. Select Create academic package.

The package stays local. It adds RO-Crate metadata, checksums, a source snapshot, and an audit report. A successful export is not peer review, privacy approval, or clinical validation.

Equivalent CLI command:

iints research academic-bundle path/to/completed_run

See Academic Research Workbench for artifact definitions.

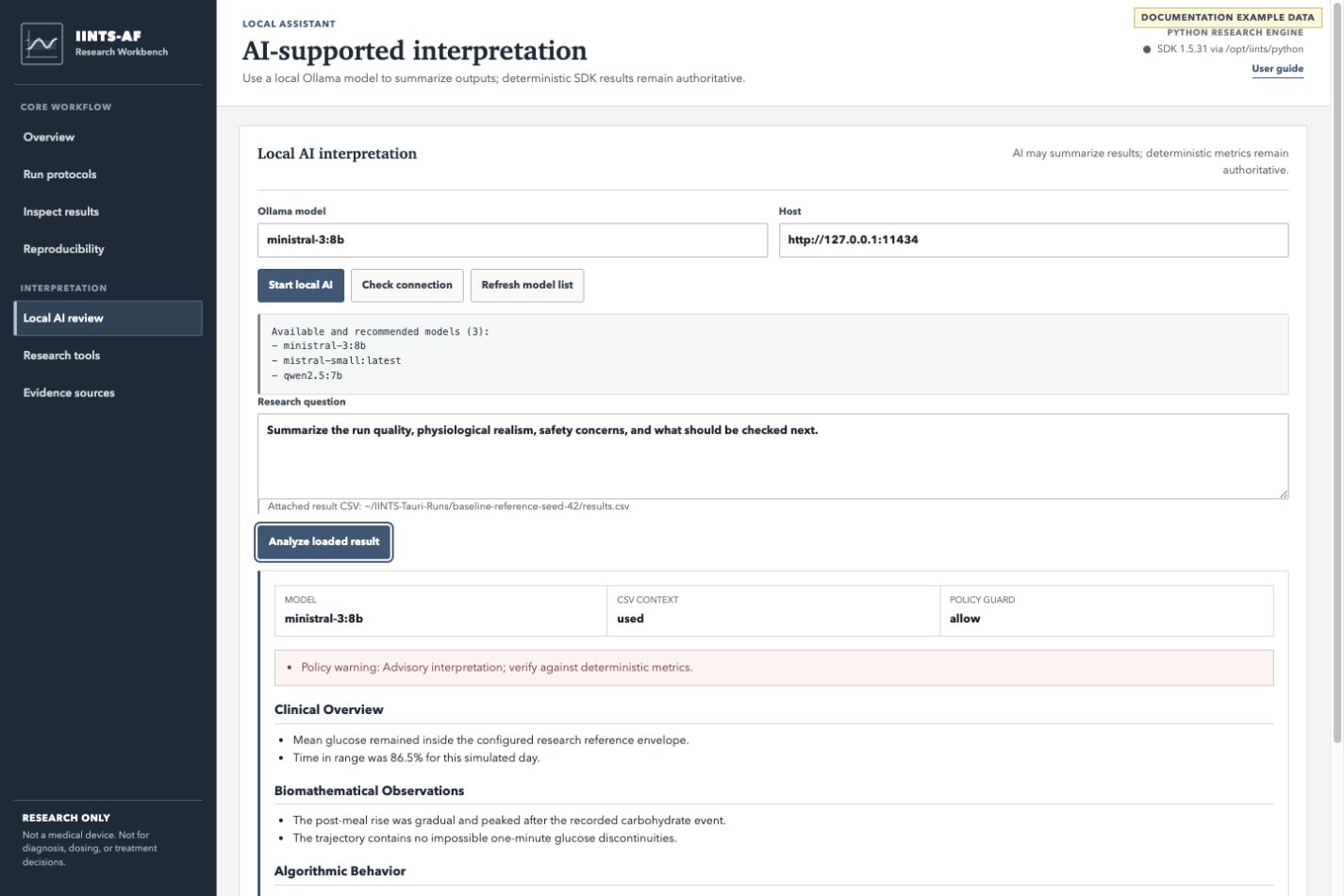

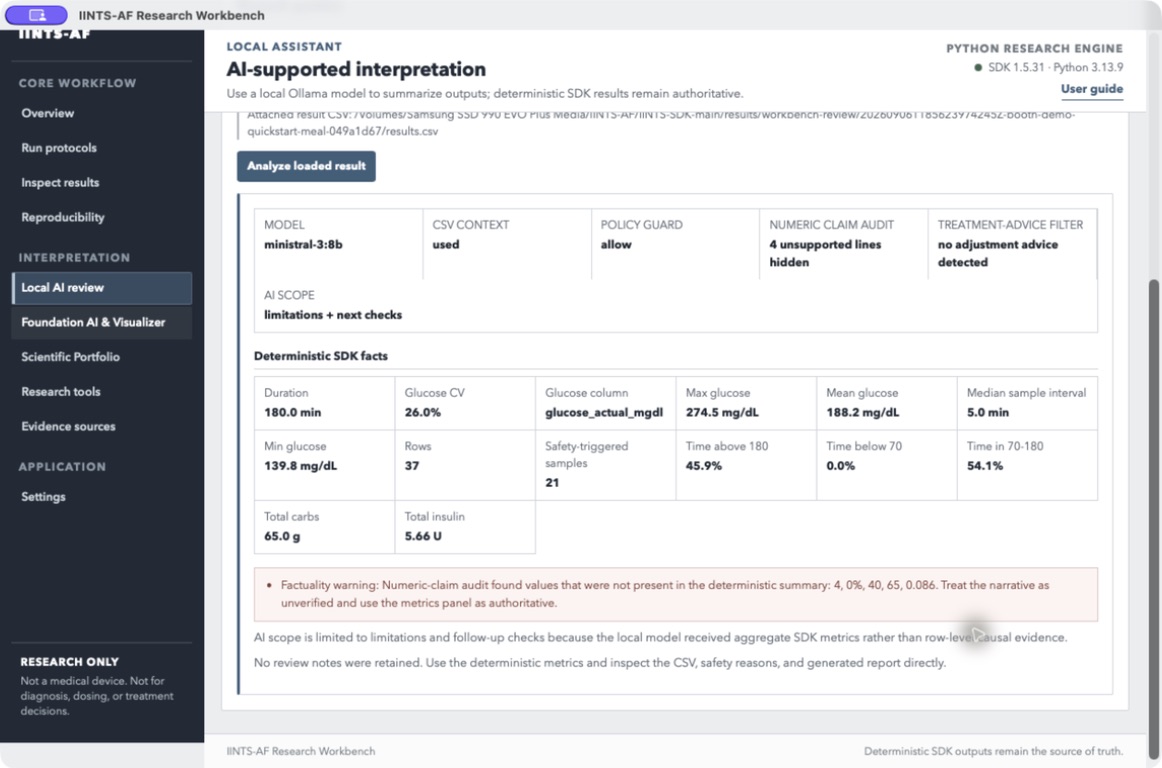

5. Use Local AI Review

Local AI is optional and advisory.

1. Open Local AI review.
2. Select or type an Ollama model name.
3. Keep the host at http://127.0.0.1:11434 for a local server.
4. Select Start local AI. The app starts Ollama when possible and prepares the selected model.
5. Confirm that the correct result CSV is attached below the question.
6. Write a focused research question.
7. Select Analyze loaded result.

The answer is separated into model metadata, policy status, warnings, headings, and lists. Verify every numerical or physiological claim against deterministic SDK outputs. Prompt instructions alone are not trusted: the Python bridge also hides lines containing unsupported quantities or treatment-adjustment suggestions before the app renders them. The metadata reports both filters.

Example questions:

Which deterministic metrics should I inspect before accepting this run as realistic?

Summarize the glucose pattern, list possible simulation artifacts, and identify claims that cannot be supported by this CSV alone.

Do not ask the model for dosing or treatment advice. Read AI Safety Gates for the enforced boundaries.

6. Use Foundation AI

The Foundation AI & Visualizer workspace is for CGM-representation research. It implements an independent, paper-aligned reproduction of the GlucoFM v2 method; it does not bundle or claim to be the official Google model or weights.

Pretrain a local reproduction

1. Choose a multi-subject CGM CSV, TSV, or Parquet dataset.
2. Choose an empty or dedicated output folder.
3. Set epochs and batch size for the available hardware.
4. Select Pretrain local reproduction and preserve its resolved configuration and logs.

Subject-separated data and sufficient observations per subject are required for meaningful evaluation. A completed training process is not evidence of generalization.

Inspect a trained representation

1. Choose a measured 24-hour CGM CSV.
2. Choose a locally trained glucofm_encoder.pt checkpoint.
3. Specify column names only when automatic detection is incorrect.
4. Select Extract trained 128D embedding.

The embedding chart is populated only from that checkpoint-backed operation. Compare selected evidence accepts comparable evaluation JSON artifacts; it does not compare arbitrary files as if their cohorts and protocols were equivalent. The Clarke chart states whether it shows held-out evidence or a fixed-seed demonstration.

7. Build A Scientific Portfolio

The Scientific Portfolio workspace creates a local dossier index from evidence already present on the computer.

1. Choose a dedicated dossier output folder.
2. Select Generate evidence dossier.
3. Read the status summary and note every skipped or missing figure.
4. Open the dossier and manifest, then verify captions, source paths, cohorts, units, and licences before sharing.

The generator does not invent missing figures or convert absent validation into a positive claim. A dossier is a review aid, not peer review, statistical significance, clinical validation, or regulatory approval.

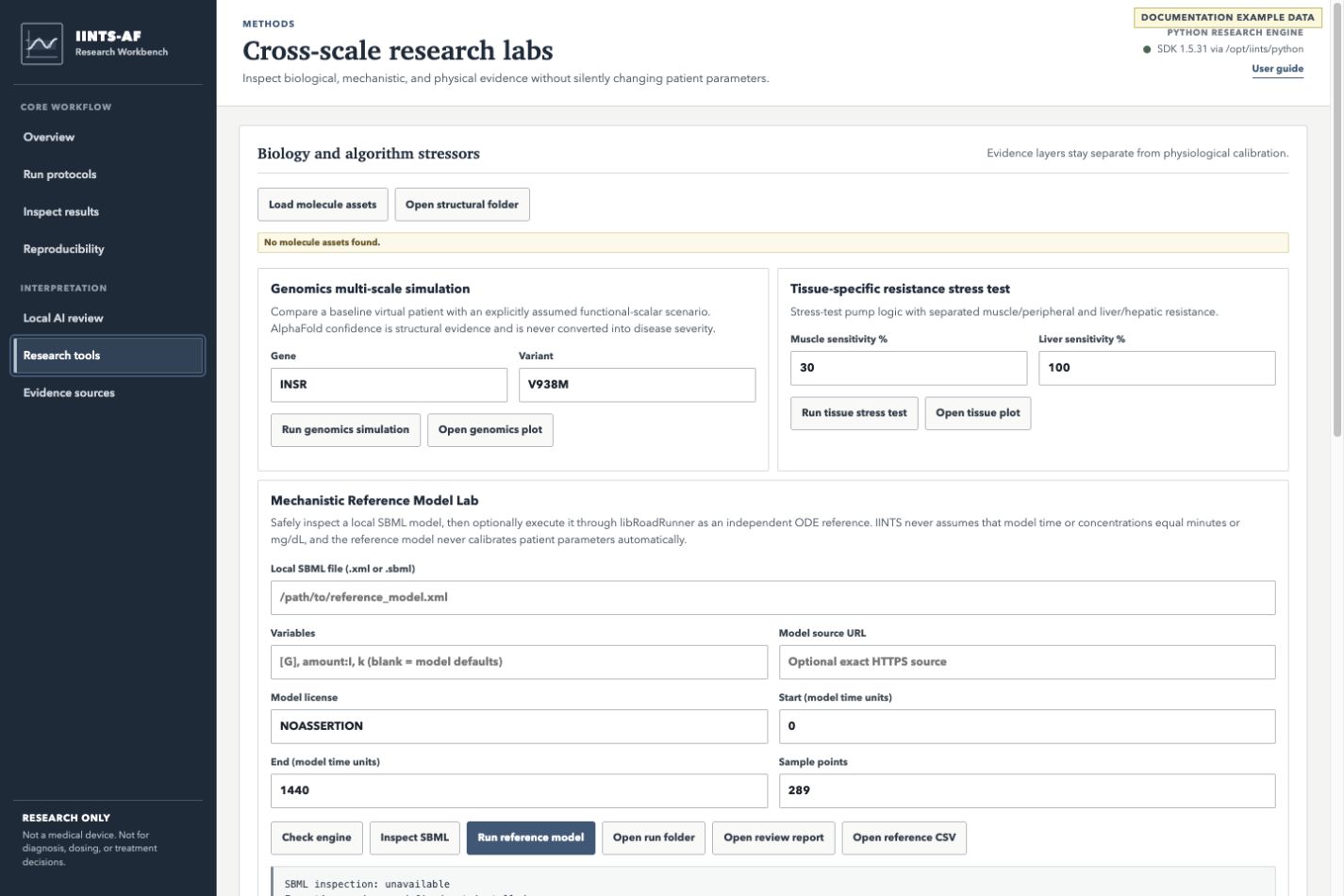

8. Use Research Tools

The Research tools workspace contains independent evidence and stress-test layers:

Tool	Use	Important boundary
AlphaFold assets	inspect protein structure and PAE confidence	confidence is not disease severity
Genomics stressor	compare an explicit functional-scalar scenario	unknown variants are not assigned an effect automatically
Tissue resistance	separate muscle and liver sensitivity assumptions	a stress test is not patient calibration
SBML/libRoadRunner	execute an independent equation model	external units are not assumed to be mg/dL or minutes
COPASI	inspect sensitivity and identifiability tasks	configured tasks and bounds require review
OpenCOR/CellML	validate an independent physiology model	imported models remain separate evidence
FMI/FMPy	inspect or run reviewed device-physics models	FMUs can contain native code and require explicit trust
BindingDB	retrieve measured affinity records	Ki, Kd, IC50, pLDDT, and in-vivo effect are distinct evidence types

Start with Check all engines. Open only the lab you need, and preserve the generated evidence bundle with the study record.

Use Choose file... beside SBML, COPASI, CellML, or FMI inputs. The native selector filters the visible files by the expected extension. Selecting a file never executes it: static inspection and explicit execution remain separate actions, and COPASI/FMI execution still requires the relevant confirmation checkbox.

Inspect an AlphaFold structure

Each bundled protein card provides separate actions with different evidence meanings:

1. View 3D opens a local, interactive C-alpha backbone in the app. Drag to rotate, scroll to zoom, or use the arrow keys. Colours represent AlphaFold pLDDT confidence.
2. Open PNG opens the bundled static render.
3. Reveal mmCIF shows the exact local coordinate file in Finder, Explorer, or the Linux file manager rather than relying on an operating-system association for .cif.
4. Generate PAE retrieves the official AlphaFold Predicted Aligned Error data over verified HTTPS and writes an interactive HTML artifact below the selected output folder.
5. AlphaFold entry opens the matching official database page in the system browser.

pLDDT describes local structure-prediction confidence and PAE describes confidence in relative residue placement. Neither value is converted into pathogenicity, insulin sensitivity, disease severity, or treatment logic.

9. Evidence Sources

The Evidence sources workspace describes whether a connector is:

• Integrated — the SDK can retrieve or generate a bounded evidence artifact.
• Partial — only part of the workflow is implemented.
• Portal — the app opens the official external resource.
• Planned — no functioning integration exists yet.

Opening a portal does not import its content into a simulation. External evidence must be cited, reviewed, licensed appropriately, and connected to a claim explicitly.

10. Configure And Maintain The App

Open Settings to maintain the workbench without mixing application controls into a scientific run.

Local preferences

You can set:

• the default output folder, selected with Choose folder...
• the default deterministic seed
• the default local Ollama model
• the local Ollama host
• whether diagnostics run at startup

Select Save settings to apply these values to the Run and Local AI workspaces. Preferences are stored only in the app's local browser storage. The Settings panel does not store tokens, passwords, patient data, or run results. Ollama hosts are restricted to localhost, 127.0.0.1, or ::1.

Software updates

The desktop app and Python SDK have separate version records:

• Install or update Python SDK creates, repairs, or updates the private app engine through a fixed, Rust-owned command. The app does not accept arbitrary shell text.
• Check for app update queries the signed Tauri update manifest. When a newer signed build is available, Install update & restart downloads, verifies, installs, and relaunches it.
• Download manually opens the newest versioned beta release as a fallback when the native updater cannot complete.
• Refresh versions compares the native app with versioned GitHub beta releases and the Python SDK with the stable PyPI release. The two components are never treated as one version.

Successful checks are cached for six hours. When release services are unavailable, the app labels the result as unverified or uses clearly identified stale cache data; it does not claim that an unknown version is current. A separate warning appears when active Python source code and installed package metadata disagree.

The updater never installs an unsigned payload: the downloaded artifact must match the public key embedded in the application. Updates are user-initiated and progress is visible. On macOS, place the app in a writable location such as /Applications; running it directly from a read-only disk image prevents replacement. The Python SDK is maintained separately because changing the scientific engine must not be confused with changing the interface.

Help

The same workspace links to this user guide, installation troubleshooting, the complete SDK documentation, and iints.org.

Common Problems

Message or symptom	What to do
Python bridge unavailable	select Install Python engine, wait for completion, then select Refresh versions
No module named iints_desktop	repair the private engine with Install or update Python SDK; the discovered Python does not contain the SDK bridge
Protocol list is empty	run diagnostics, verify the SDK installation, then select Refresh protocols
Native selector does not open	confirm you are using the installed app rather than a browser preview
CSV preview fails	select the file again with Choose CSV... and confirm it is a supported results CSV
Ollama command not found	install Ollama once; on macOS keep the app in /Applications, then run diagnostics again
Ollama command found but service unavailable	open Local AI and select Start local AI, then run Check connection
A run, report, test, or update fails with No space left on device	check free space on both the selected output volume and the operating system temporary volume; large jobs may still use temporary files even when results are stored on an external disk
Model is missing	choose Refresh model list or allow Start local AI to pull the selected model
Optional research engine missing	install or configure only the engine required for that lab
macOS blocks the beta	follow the signed-build and Gatekeeper guidance in Desktop App Installation

Keep A Reviewable Record

For every result you intend to discuss or publish, preserve:

run-folder/
├── results.csv
├── config.json or run metadata
├── clinical or research report
├── safety and audit events
├── MDMP artifacts when used
└── academic_bundle/
    ├── ro-crate-metadata.json
    ├── checksums
    └── academic audit

The interface is a workbench, not the scientific authority. The Python SDK output, recorded configuration, deterministic checks, and source evidence remain the basis for interpretation.

Updating an installed Tauri workbench

In Settings, check for an app update, then choose to install the offered version. The workbench downloads and verifies the signed update and restarts. You normally do not need to download another DMG or EXE manually. Finish running jobs first; Windows may display an installer or permissions prompt. On macOS, install the app in a writable location rather than running it inside the DMG.

The Python SDK is a separate update: use Install or update Python SDK and then refresh versions. Beta 0.2.14 needs SDK 1.5.37 for automatic results preparation. Older engines retain the basic workflow and show an update hint. In-app updater signatures do not replace Apple notarization or Windows signing. The older PySide desktop app cannot update into Tauri through this mechanism.
