Results, Validation and Limitations

How results should be read

A simulation result has three different questions:

1. Software correctness: did the code execute the specified experiment?
2. Physiological plausibility: does the trace behave within documented research envelopes?
3. Clinical validity: would the result generalise safely to people?

IINTS-AF tests the first question extensively and provides tools for the second. It does not establish the third.

Locked EUCYS benchmark

The maintained EUCYS benchmark bundle contains:

Dimension	Value
Patient profiles	6
Scenario families	4
Study arms	3
Algorithm paths	5
Seeds	10
Total runs	3600

The three study arms test clean certified input, deliberately corrupted uncertified input, and a supervisor-off ablation.

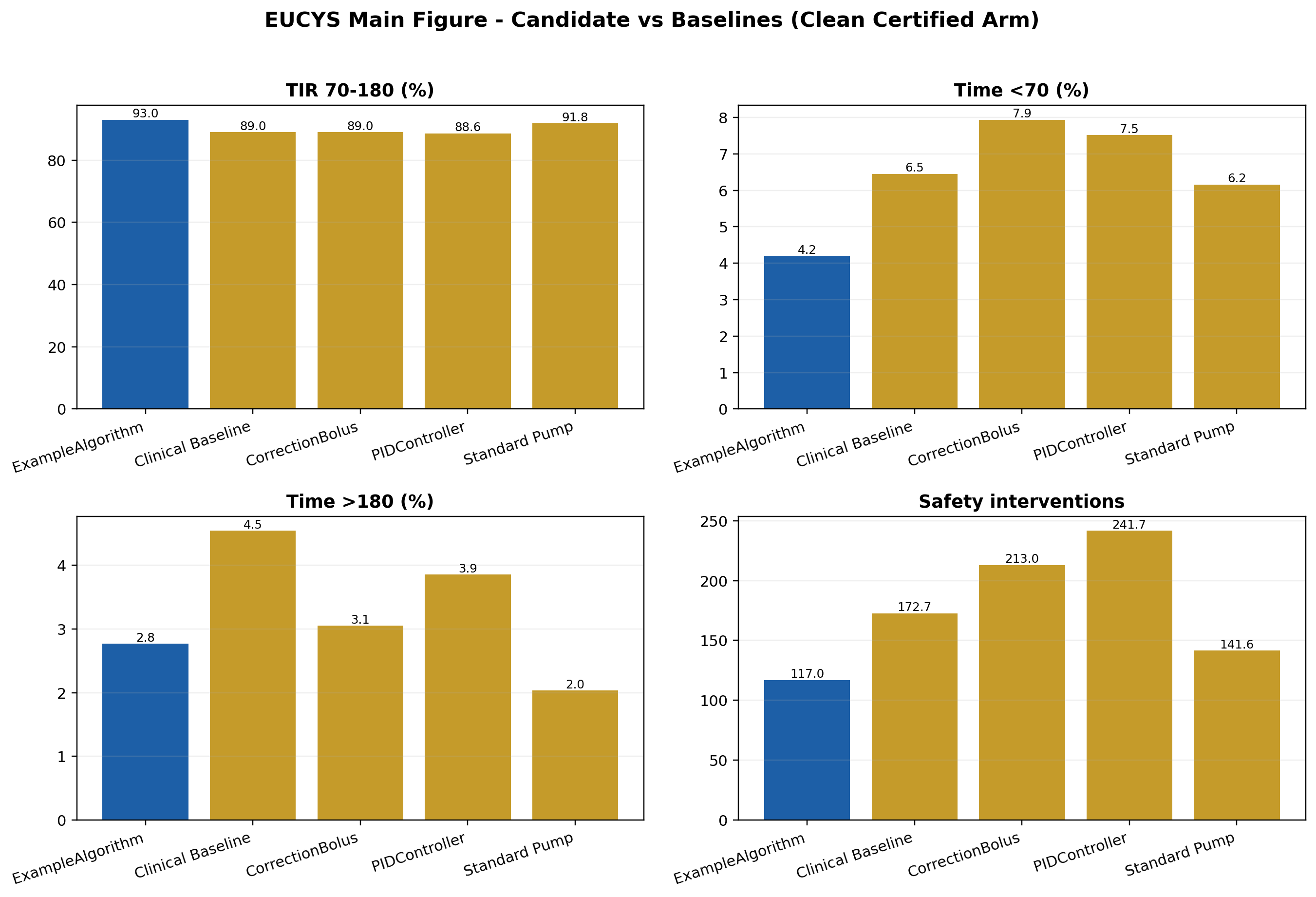

Aggregate study-arm results

Source: research/eucys_pack/assets/EUCYS_RESULTS_TABLE.csv.

Study arm	Runs	Mean TIR 70-180	Mean time below 70	Mean time above 180	Mean supervisor interventions
Clean, certified	1200	90.30%	6.45%	3.25%	177.19
Corrupted, uncertified	1200	73.19%	3.69%	23.12%	219.72
Supervisor-off ablation	1200	80.78%	3.88%	15.35%	198.02

Weighted across the equally sized arms, mean TIR is approximately 81.42%. The clean-versus-corrupted TIR difference is approximately 17.11 percentage points.

What the benchmark supports

The benchmark supports these narrow claims:

• the SDK can execute a large locked matrix over profiles, scenarios, algorithms, arms and seeds
• clean and deliberately corrupted data conditions produce measurably different outcomes
• algorithm and safety-event trade-offs are exported in reviewable tables
• a result can be traced back to protocol and run artifacts
• the platform exposes undesirable outcomes instead of hiding them

What the benchmark does not support

The benchmark does not prove:

• that the candidate algorithm is clinically safe
• that a high TIR compensates for excessive time below range
• that every supervisor intervention is appropriate
• that the virtual population represents a clinical population
• that the same performance will occur on an external dataset or certified simulator
• that the simulator can be used to determine a real dose

Findings that require investigation

Scientific honesty is a feature of the platform. The existing table contains important warning signals:

Low-glucose burden

The clean arm reports 6.45% mean time below 70 mg/dL. That is not a result to present as satisfactory control. It requires investigation by profile, scenario, algorithm and seed.

Severe-low run counts

The artifact records severe-low exposure in many runs. The exact event definition and duration must be checked before interpretation. This means the benchmark is useful as a failure-discovery dataset, not as proof of safety.

Intervention burden

Mean intervention counts are high. Possible explanations include aggressive candidate behaviour, unsuitable controller-patient pairing, overly sensitive safety settings, event-count semantics or repeated interventions during one episode. The next analysis should report interventions per hour and group adjacent events into episodes.

Ablation interpretation

The supervisor-off arm cannot be interpreted only from TIR. Removing a guard can change control behaviour and event counting in non-obvious ways. Safety ablations should compare matched proposals, delivered actions, low-glucose events and termination reasons.

Validation ladder

flowchart TD
    A["Unit and property tests"] --> B["Deterministic replay and golden vectors"]
    B --> C["Scenario and preset plausibility checks"]
    C --> D["Calibration against documented real data"]
    D --> E["External dataset or reference-simulator validation"]
    E --> F["Prospective clinical and regulatory evaluation"]

IINTS-AF currently operates primarily in levels A-C, with research workflows for level D. Levels E and F are future independent work.

Software validation

The repository includes:

• unit tests for patient models, sensors, safety, algorithms and data contracts
• property tests for selected safety invariants and numeric guards
• deterministic replay and golden benchmark workflows
• regression tests for metrics and reports
• static typing and lint checks
• architecture-boundary checks
• docs builds and desktop smoke tests
• dependency and security scanning

Passing these checks means that the software behaves according to its specified tests. It is not clinical validation.

Physiological plausibility checks

A convincing glucose trace should be checked for:

Check	Example failure
Finite and bounded values	NaN, negative concentration or explosive solver state
Rate of change	Impossible one-minute vertical jump
Meal timing	Peak before carbohydrate appearance
Insulin timing	Immediate glucose fall before absorption/action delay
Sensor behaviour	Perfect blood-glucose observation despite configured CGM lag
Basal stability	Flat line caused by a broken or inactive model
Event visibility	Meal or delivered insulin absent from the output
Seed robustness	One attractive seed hiding unstable outcomes
Population spread	Every virtual patient behaving identically

Real-data calibration protocol

The recommended calibration sequence is:

1. Keep raw data local and record dataset access terms.
2. Standardise timestamp, glucose, insulin, carbohydrate and context units.
3. Split by subject before fitting parameters.
4. Calibrate only identifiable parameter groups.
5. Preserve a held-out subject set.
6. Compare distributional metrics, event response and rate-of-change, not only mean squared error.
7. Report confidence intervals and failure subgroups.
8. Freeze calibrated profiles before comparing algorithms.

OhioT1DM can support forecasting and behaviour calibration, but it does not contain every latent physiological state. Unobserved quantities must not be presented as directly measured.

Priority next experiments

Priority	Experiment	Why
P0	Decompose severe-low runs by profile, scenario, algorithm and seed	Identify the source of the current safety signal
P0	Group supervisor events into episodes and normalise per hour	Make intervention burden interpretable
P1	Post-meal peak timing and width against held-out CGM days	Test meal absorption realism
P1	Exercise onset, delayed hypo and recovery edge cases	Stress the exercise abstraction
P1	Sensor lag, dropout and compression-low challenge set	Separate controller failure from observation failure
P1	Renal threshold/splay sensitivity analysis	Test robustness of the high-glucose extension
P1	HAAF build, saturation and recovery sweeps	Prevent unrealistic one-episode saturation
P2	External reference-simulator comparison	Test model structure beyond internal regression
P2	Prospective clinician review of scenario semantics	Improve medical interpretability

Limitations register

Limitation	Current mitigation	Remaining risk
Model parameters may not represent an individual	Profiles, calibration tools and explicit metadata	Population validity remains uncertain
Research extensions combine sources	Formula registry and per-formula validation notes	Coupled behaviour may be under-validated
CGM model is generic	Configurable lag, noise and artifacts	No exact vendor equivalence
Safety rules are deterministic but hand-designed	Audit reasons and ablation studies	Rules can still be wrong or incomplete
AI explanations may hallucinate	Evidence-first prompts and no numeric authority	Human review remains necessary
Benchmark contains concerning low-glucose outcomes	Failure is preserved and reported	Controller/profile tuning still required
External biology tools are cross-scale context	Strict no-auto-calibration boundary	Users may still overinterpret visuals
Desktop and hardware expand attack surface	Rust allowlists, tests and local-first design	Ongoing security maintenance required

Strongest defensible conclusion

IINTS-AF demonstrates a reproducible and inspectable way to run pre-clinical diabetes-technology experiments, expose failure cases and separate algorithm proposals from deterministic safety checks. The current evidence supports research use and further validation, not clinical use.
